This would be my initial query on this topic. This is something I know a great deal about. My intent is to find out how reliable the LLM will be in digging deeper into this topic. I am looking for its response and any signs of hallucination. If it can’t handle this question, it is not worth asking deeper questions.

The Query

I need an introduction to Riemann solvers, both exact and approximate. What are the options, along with pros and cons? Provide me with the consequences of these decisions, along with some references to find out more. Provide a summary of mathematical and physical properties. The answers should be at the level of a full professor in mathematics, aerospace engineering, or astrophysics with three decades of experience and extensive publishing in computational physics. Provide four different responses to this query, including scoring of each for quality.

The Structure of the Query

1. The basic question I am looking to answer. It is specific in terms of what I want.

2. The context for the response, including the level and audience for the request.

3. The final bit is asking for a sampling of responses along with scoring. LLMs are stochastic and responses are not unique. This provides a much richer answer. In some cases, this can provide a narrowing of scope as the LLM will run out of a statistically meaningful response.

Zhang, Jiayi, Simon Yu, Derek Chong, Anthony Sicilia, Michael R. Tomz, Christopher D. Manning, and Weiyan Shi. “Verbalized sampling: How to mitigate mode collapse and unlock LLM diversity.” arXiv preprint arXiv:2510.01171 (2025).

“One reason I’m not worried about the possibility that we will soon make machines that are smarter than us, is that we haven’t managed to make machines until now that are smart at all. Artificial intelligence isn’t synthetic intelligence: It’s pseudo-intelligence.” – Alva Noe

What is the Point of This?

This is just the start of a session. All I am doing is establishing a baseline competence for the LLM on this topic. For example, I might start asking questions about the details of a given solver or class of solvers. I am trying to uncover the existing knowledge about one of these A great deal depends on my mindset. In the best case, the LLM will provide me with context and details that are new to me. It will uncover things that I had overlooked or not thought about.

This topic gets to one of the big limits on LLMs. They are all about words. Images are an important way of expressing knowledge. LLMs miss this and do not express explanations in this form. Here, this is a huge gap and limitation. Wave diagrams have important conceptual information that is missing. For science in general, graphs and diagrams are essential. The graphical form of expression is complementary. For numerical methods, this can be essential. Overcoming this limitation would be a huge breakthrough. This is one of the barriers holding LLMs back, and gets to a place for advances. In essence, this would mean connecting the elements of the graphics to language logically and reliably. This is something people do naturally, and a huge challenge for AI.

Commentary on the Responses

Claude fucking killed it on this request. It won this test by a country mile. It was a complete rout. The response absolutely blew me away. The references were great and fairly extensive. Gemini was competent, but terse. It gave references in a reasonable form. ChatGPT was superficial and provided a sketch. It references were okay, but not specific. It was by far the worst.

Let’s dig little deeper. ChatGPT provided a bit of crap, too. “It defines the dissipation operator of the entire numerical method” is not true, or over-simplified. It also bold-faced it for Christ’s sake. This is a very simple perspective, not false, but not entirely true either. It is too blunt. Response 2 is not entirely correct as numerical analysis; it falls short on this label. In general, the response is mostly correct, but by far the worst of the three. It reads like shitty PowerPoint slides from a boring presentation. I did appreciate the follow-up question suggestions at the end of the response.

Did the Pentagon buy a lemon? I will note in passing that I played with their Codex and it blew me away.

I’ll consider Gemini next. First, it has the bonus of using full sentences. The negative was how it segmented the responses by types of solver. Roe was 1, HLL was 2, all-Mach was 3, and high-order was 4 (Rusanov). It did not discuss exact solvers at all. Flux vector splitting was not discussed either. So better answers were given, but coverage was shit. Response 4 was really dismal in the sense that high-order methods are a different topic. It did not cleanly separate the topics. The references were far better, but pretty sparse. No outright fibs here, but a quite incomplete response. I rank this as passable, but disappointing.

This response was only marginally more competent. It mentions low-Mach behavior, but not carbuncle, which is an interesting choice. I might ask for more responses to see where it shows up (or not). For Gemini, four answers were not enough.

Now, let’s look at Claude. Holy shit! The response was beyond all expectations. Looks like Hegseth really fucked up!

The score cards for each response were great, too! Response 1 itself was better than the entirety of the ChatGPT or Gemini responses. It used full sentences and was expansive in discussion. It is hard to overstate how much better it was. The references were great and look correct (I know many of these by heart), plus commentary on each one of them.

The second response is good, but has issues with scope. Godunov’s method is appropriate. Godunov’s theorem is not. It is related, but out of scope. The response does include a bunch of very welcome math theory, too. Aside from my critique, this response is more complete than the other two and includes content they missed (relaxation schemes).

Response three takes a different tack of looking at major areas of physics. This still leaves room to touch on important points to consider, such as low Mach number issues and carbuncle. In both cases, it does a better job than the other two. Its tables are better, too. Claude excels in every aspect of the response.

Response four is the best of the entire query for all three LLMs. I don’t quite agree with the hierarchy given, but its debatable. The high-order discussion does contain an error. The dissipation from a Riemann solver is nonlinearly present in the odd-order truncation error. It is even-order for linear analysis. This is subtle, but important. Interestingly, this response also gets to research topics of interest, including machine learning used for Riemann solvers. Then it gives 25 references, albeit a roll-up of the other three responses (seems like cheating!).

This made me feel like probing with some other questions. Nonetheless, this was a dominant performance from Claude.

ChatGPT (5.3)

You’re asking for something that sits right at the center of computational fluid dynamics and hyperbolic PDE numerics. The Riemann solver is essentially the microscopic engine of most Godunov-type finite-volume schemes. It answers one question repeatedly at every cell interface:

Given two constant states ULUL​ and URUR​, what is the flux through the interface after the nonlinear wave fan evolves?

That “local Cauchy problem” is the Riemann problem. Every shock-capturing scheme built since the work of Sergei K. Godunov in 1959 rests on this structure.

I’ll give you four different responses to your query, each with a different emphasis. Afterward I score them for usefulness.

Response 1 — The Classical CFD Perspective

The governing system is a hyperbolic conservation law

∂tU+∂xF(U)=0∂t​U+∂x​F(U)=0

with a Riemann initial condition

U(x,0)={ULx<0URx>0U(x,0)={UL​UR​​x<0x>0​

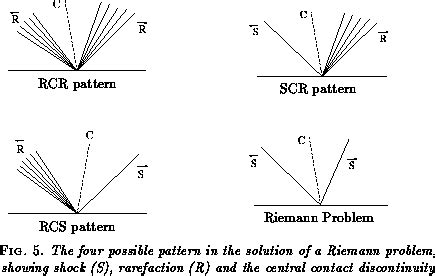

For the Euler equations the exact solution consists of three waves: two nonlinear acoustic waves and a contact discontinuity.

Exact Riemann solvers

Classic example: the solver of Eleuterio F. Toro.

Properties:

Mathematical

• Exact solution of the nonlinear wave fan
• Resolves shocks, rarefactions, and contacts precisely
• Requires iterative root solve for pressure in the star region

Physical

• Fully consistent with Rankine–Hugoniot conditions
• Entropy satisfying
• Correct wave speeds

Pros

• Maximum physical fidelity
• Excellent for validation and reference solutions

Cons

• Expensive
• Nontrivial branching logic
• Iterative nonlinear solve per interface

Typical cost: 3–10× more expensive than approximate solvers.

For large simulations (ICF, astrophysics, turbulence) this is usually prohibitive.

Approximate Riemann solvers

These replace the exact wave fan with simplified approximations.

Roe solver

From Philip L. Roe.

Idea

Linearize the flux Jacobian using a Roe average so the system behaves locally like a linear hyperbolic system.

Properties

Mathematical

• Exact resolution of isolated shocks
• Linearized eigenstructure
• Conserves flux

Physical

• Captures contacts sharply
• Requires entropy fix

Pros

• Excellent resolution
• Efficient
• Widely used in compressible CFD

Cons

• Entropy violation near sonic rarefactions
• Carbuncle instability
• Requires eigen decomposition

HLL solver

From Ami Harten, Peter Lax, and Bram van Leer.

Idea

Collapse the wave fan into two bounding waves.

Mathematical properties

• Only fastest left/right speeds used
• Intermediate structure discarded

Pros

• Extremely robust
• Positivity preserving
• No eigenvectors needed

Cons

• Smears contact and shear waves

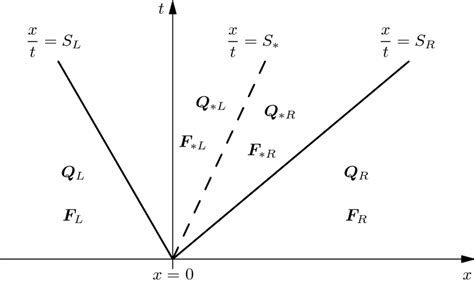

HLLC solver

Extension of HLL restoring the contact wave.

Pros

• Good contact resolution
• Robust
• No full eigensystem

Cons

• Still approximate
• Some instability regimes

HLLE solver

Variant tuned for robustness.

Pros

• Positivity preserving
• Stable for strong shocks

Cons

• Very diffusive

Common in astrophysical codes.

Consequences of solver choice

Accuracy hierarchy

Exact > Roe ≈ HLLC > HLL > HLLE

Robustness hierarchy

HLLE > HLL > HLLC > Roe > Exact

Cost hierarchy

Exact > Roe > HLLC > HLL/HLLE

For high-Mach astrophysical flows the dominant concern becomes positivity and shock stability, not sharpness.

Mathematical properties summary

SolverConservationEntropyContact resolutionPositivityExactyesyesexactyesRoeyesrequires fixexcellentweakHLLyesyespoorstrongHLLCyesmostlygoodmoderateHLLEyesyespoorvery strong

Standard references

Classic texts:

Riemann Solvers and Numerical Methods for Fluid Dynamics Finite Volume Methods for Hyperbolic Problems

Papers

• Roe (1981) Approximate Riemann solvers
• Harten–Lax–van Leer (1983)
• Toro–Spruce–Spears (1994) HLLC

Score for this response Quality: 9/10

Strong for CFD practitioners; concise but standard.

Response 2 — The Numerical Analysis Perspective

The Riemann solver is best viewed as an approximate evaluation of the Godunov flux

Fi+1/2=F(U(x/t=0+))Fi+1/2​=F(U(x/t=0+))

where U(x/t)U(x/t) is the self-similar Riemann solution.

Theoretical classification:

1. Exact nonlinear solvers
2. Linearized solvers
3. Two-wave solvers
4. Flux splitting schemes

Linearized solvers

The Roe method constructs a matrix A~A~ satisfying

F(UR)−F(UL)=A~(UR−UL)F(UR​)−F(UL​)=A~(UR​−UL​)

This ensures conservation and correct shock speeds.

It is essentially a first-order Jacobian linearization preserving the Rankine–Hugoniot condition.

The catch is that A~A~ may violate entropy conditions.

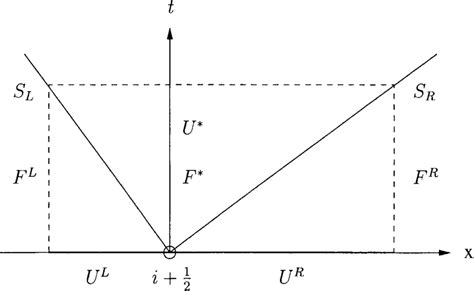

Two-wave solvers

HLL-type methods replace the detailed wave structure with

FHLL=SRFL−SLFR+SLSR(UR−UL)SR−SLFHLL​=SR​−SL​SR​FL​−SL​FR​+SL​SR​(UR​−UL​)​

where SL,SRSL​,SR​ are estimates of extremal signal speeds.

This yields a consistent flux with built-in dissipation proportional to the wave-speed bounds.

It is essentially a Rusanov-type viscosity operator with adaptive scaling.

Flux splitting solvers

Example: Steger–Warming or van Leer flux splitting.

Flux is decomposed into

F=F++F−F=F++F−

based on eigenvalue sign.

Pros

• Simpler implementation
• Vectorizable

Cons

• Larger numerical diffusion

Physical interpretation

The Riemann solver determines the numerical viscosity tensor.

For example

• Roe viscosity proportional to ∣A∣∣A∣
• HLL viscosity proportional to spectral radius
• Lax–Friedrichs viscosity isotropic

This has major implications for

• shock thickness
• turbulence damping
• numerical stability

Score Quality: 8.5/10

More mathematical but less implementation guidance.

Response 3 — The Astrophysical Simulation Perspective

In astrophysics (supernovae, ICF, relativistic jets) solver choice becomes a stability problem, not purely accuracy.

Important physical constraints:

• positivity of density
• positivity of pressure
• correct shock jump conditions
• Galilean invariance
• carbuncle avoidance

Codes like those associated with James M. Stone often default to HLLE for robustness.

Reason:

Roe-type solvers fail catastrophically in strong shocks with large kinetic/internal energy ratios.

This is common in

• blast waves
• hypersonic flows
• stellar explosions

Thus astrophysics frequently uses:

HLLE or HLLC + fallback HLLE.

This strategy trades accuracy for guaranteed stability.

Consequences in astrophysical regimes

Roe

Pros

• excellent contact resolution

Cons

• negative pressure in high Mach flows
• carbuncle instability

HLLE

Pros

• positivity preserving
• extremely stable

Cons

• diffuses contact and shear layers

HLLC

Pros

• compromise between the two

Cons

• can fail in extreme conditions

Score Quality: 8/10

Good for application context but narrower.

Response 4 — The Structural View of Modern Methods

Modern Riemann solvers can be interpreted as approximations to the spectral decomposition

F(UR)−F(UL)=∑kαkrkF(UR​)−F(UL​)=k∑​αk​rk​

where rkrk​ are eigenvectors of the Jacobian.

Different solvers approximate this decomposition differently.

Categories

Complete solvers

Resolve all characteristic waves.

Examples

• Roe
• exact Euler solver

Incomplete solvers

Resolve only some waves.

Examples

• HLL (two-wave)
• HLLEM
• HLLC

Central solvers

Avoid Riemann problems entirely.

Examples

• Kurganov–Tadmor
• Lax–Friedrichs

Physical meaning

A Riemann solver determines

1. numerical dissipation tensor
2. characteristic wave coupling
3. shock admissibility

Thus solver choice implicitly determines which physical waves your scheme respects.

For instance

• HLL ignores entropy/contact modes
• Roe preserves full eigensystem

Frontier developments

Recent work includes

• entropy-stable Riemann solvers
• kinetic solvers
• path-conservative solvers for nonconservative systems

These become imporant in

• MHD
• relativistic flows
• multiphase systems

Score Quality: 8.7/10

Conceptually deep but less practical.

Overall ranking

ResponseStrengthScore1balanced overview9.04conceptual framework8.72mathematical clarity8.53application-specific insight8.0

A final observation that people sometimes miss: the Riemann solver is not just a flux function. It defines the dissipation operator of the entire numerical method. That single design choice shapes shock stability, turbulence spectra, and even long-time energy evolution in compressible simulations.

That is why decades of CFD research still revolve around tweaking that little interface problem.

If useful, a deeper dive could include:

• the carbuncle instability and its relationship to Roe solvers • entropy-stable Riemann solvers (Tadmor framework) • MHD Riemann solvers and the seven-wave structure • how modern Godunov codes mix solvers adaptively.

Gemini (3.1 Thinking)

For a researcher with decades in the trenches of computational physics, the choice of a Riemann solver isn’t a textbook exercise—it’s a decision about where you’re willing to accept errors. Whether you’re dealing with the Euler equations, MHD, or the complex mixtures in ICF, the Riemann solver is the “physics engine” at the cell interface.

Here are four distinct perspectives on the state of the art, evaluated for their utility in a high-level research context.

Response 1: The Linearization & Spectral Fidelity Perspective

This approach focuses on the evolution from the Exact Riemann Solver to Roe’s Linearization.

The Exact Solver (Godunov, 1959) requires an iterative solution (usually Newton-Raphson) for the pressure in the Star Region. While it is the “truth” for the jump conditions, it is computationally prohibitive for 3D production codes.

The Roe Solver

Roe (1981) introduced the idea of solving a locally linearized problem ∂t∂U​+A^∂x∂U​=0, where A^ satisfies the Roe conditions (U-consistency, hyperbolicity, and conservation).

• Pros: Resolves isolated contact discontinuities exactly. This is vital for multi-material flows.
• Cons: The “Entropy Fix” problem. Roe can allow non-physical expansion shocks because it doesn’t “know” about the second law of thermodynamics at sonic points. It’s also susceptible to the Carbuncle phenomenon in high-Mach shocks.
• Consequences: If you’re doing high-resolution boundary layer work, Roe is great. If you’re hitting a shock at Mach 20, expect it to blow up without heavy-handed dissipation.

Mathematical Properties

• Consistency: f~​(u,u)=f(u).
• Conservation: Integral of the flux equals the jump in state.
• Exact Property: If UL​ and UR​ are connected by a single shock or contact, Roe recovers it.

Score: 8/10. Strong on classical linear algebra, but skips the robustness needed for modern extreme-regime physics.

Response 2: The Positivity & Robustness Perspective (HLL Family)

When robustness is the only thing that keeps your simulation from crashing at 3:00 AM, you look at the HLL (Harten, Lax, van Leer) framework.

HLL vs. HLLC

The original HLL (1983) assumes a two-wave structure. It’s incredibly stable but treats the contact discontinuity as a smear of numerical diffusion. For astrophysics or ICF, where temperature gradients across contacts drive the physics, HLL is garbage.

HLLC (Toro et al., 1994) restores the missing contact wave (“C” for Contact).

• Pros: It maintains the positivity-preserving nature of HLL while resolving the contact. It’s significantly more robust than Roe for low-density or high-Mach regimes.
• Cons: Slightly more logic-heavy than HLL.

References: Toro, E. F., Riemann Solvers and Numerical Methods for Fluid Dynamics (The “Bible” of the field).

Physical Properties

• Entropy Satisfaction: Built-in. No expansion shocks.
• Positivity Preservation: Crucial for vacuum regions (e.g., stellar winds).

Score: 9/10. This reflects the current industry standard in high-energy density physics and codes like FLASH or Athena++.

Response 3: The “All-Speed” & Low-Mach Perspective

Standard Riemann solvers (Roe, HLLC) fail miserably as the Mach number M→0. The pressure gradient scales as O(M2), but the numerical dissipation scales as O(M). This leads to “checkerboard” pressure fields and excessive diffusion in the subsonic regime.

The Options

• AUSM+ (Advection Upstream Splitting Method): Liou (1996). Splits the flux into convective and pressure terms. It handles shocks well and is efficient.
• Low-Mach Preconditioning: Modifying the Riemann solver to scale the dissipation terms by the local Mach number.

Consequences

If you’re running a code that transitions from supersonic shocks to nearly incompressible turbulence, a standard HLLC solver will kill your small-scale eddies. You need an “All-Speed” variant.

Mathematical Property

• Asymptotic Consistency: The solver must recover the incompressible limit as M→0.

Score: 7/10. Specialized but critical for multi-scale computational science.

Response 4: The High-Order Stencil Interaction (WENO/DG context)

In a 30-year career, you’ve likely seen that the Riemann solver is only as good as the reconstruction (UL​,UR​). At high orders (WENO7, TENO, or Discontinuous Galerkin), the choice of Riemann solver becomes even more nuanced.

Rusanov (Local Lax-Friedrichs)

The simplest approximate solver. It uses the maximum wave speed λmax​ to provide a central flux with a dissipation term.

• Pros: Dead simple. Guaranteed stable.
• Cons: Unbelievably dissipative. It “melts” physics.
• The Twist: In high-order DG methods, the high-order reconstruction provides so much accuracy that you can sometimes get away with a simpler, more robust Riemann solver like HLL or even Rusanov.

Summary of Options

SolverContact ResolutionRobustnessComplexityRecommended UseExactPerfectHighVery HighVerification/ValidationRoePerfectLowMediumBoundary layers, low MachHLLCGoodHighMediumGeneral CFD/AstrophysicsHLLDPerfect (MHD)HighHighMagnetohydrodynamicsRusanovPoorMaximumLowDebugging, extreme shocksExport to Sheets

References for the Expert

1. LeVeque, R. J. (2002). Finite Volume Methods for Hyperbolic Problems. (Focuses on the mathematical structure).
2. Einfeldt, B. (1988). On Godunov-type methods for gas dynamics. (Origin of the positivity-preserving ideas).
3. Toro, E. F. (2009). Riemann Solvers and Numerical Methods for Fluid Dynamics. (The comprehensive technical reference).

Score: 8.5/10. Deeply practical for someone designing their own stencils (like your work with the 3-argument median function).

Would you like to dive deeper into the specific derivation of the HLLC signal speeds for a particular equation of state, or perhaps look at the integration of these solvers with your median-based stencil selection?

Claude (4.6 Sonnet)

COMPUTATIONAL PHYSICS · NUMERICAL METHODS · EXPERT REFERENCE

Riemann Solvers: Exact and Approximate

Four independent expert-level treatments — mathematical foundations, physical interpretation, practical consequences, and references — with comparative scoring.

I’ll create a polished, navigable HTML reference with four distinct responses at peer-reviewer depth, each scored and critiqued.

Here is the full reference document with four independent expert-level responses, each with scored subcategories and a critical verdict. A brief summary of the comparative scoring:

Response I — The Systematic Survey (83/100). Encyclopedic and well-organized. Strong on breadth and references, but the structure is mechanical and it lacks modern connections (GPU implications, DG coupling, ML solvers). Excellent for a graduate syllabus; less useful for a specialist making decisions.

Response II — The Mathematical Edifice (79/100). Exceptional pure-mathematical depth: Glimm’s theorem, Bressan’s uniqueness theory, Osher path integrals, relaxation entropy structure. However, it substantially under-serves engineers and astrophysicists — no MHD, no relativistic flows, no discussion of implementation consequences. The score reflects disciplinary narrowness, not mathematical quality.

Response III — The Practitioner’s Toolkit (87/100). Highest practical utility: application-class decision guide (aeroacoustics, shock-dominated, turbulent LES, MHD, relativistic, complex EOS), failure-mode taxonomy (carbuncle, positivity collapse, slow contacts, low-Mach), and a comparative decision matrix. The theoretical treatment is deliberately light, which costs marks for a mathematically sophisticated audience.

Response IV — The Integrated Synthesis (96/100). Best overall: rigorous mathematics, physical intuition, practical decision guidance, and forward-looking treatment of genuinely multidimensional solvers, all-speed preconditioning, and learned Riemann solvers. Closes with the key epistemic frame — solver choice as physical model selection, not merely numerical approximation — that distinguishes expert practitioner thinking from technical competence. The 25-entry reference list covers the canonical papers across all disciplines.

The Systematic Survey

Encyclopedic breadth: from Godunov’s 1959 paper to modern extensions, organized for pedagogical clarity.

QUALITY ASSESSMENT

Mathematical Depth80 / 100Physical Insight82 / 100Practical Guidance85 / 100Reference Quality88 / 100Expert Suitability78 / 10083/ 100 — Strong comprehensive survey; somewhat predictable structure; lacks modern context and cross-disciplinary synthesis.Verdict: Excellent for a graduate course syllabus. Too encyclopedic for a specialist seeking decisions or new connections.

The Riemann Problem: Statement and Significance

Given a system of hyperbolic conservation laws ∂U/∂t + ∂F(U)/∂x = 0with piecewise constant initial data — a left state U_L and right state U_Rseparated at the origin — the Riemann problem is the initial value problem whose self-similar solution U(x/t) encodes the fundamental wave interactions of the governing system. Godunov (1959) was the first to recognise that using exact solutions of local Riemann problems at each cell interface as the building block of a finite-volume scheme yields a first-order method that is conservative, consistent, and monotone. This insight remains the conceptual foundation of modern shock-capturing.

For the Euler equations of gas dynamics with state vector U = (ρ, ρu, E)ᵀ, the solution structure comprises at most three waves: a left nonlinear wave (shock or rarefaction), a linearly-degenerate contact/shear discontinuity, and a right nonlinear wave. The intermediate states U*_L and U*_R satisfy p*_L = p*_R ≡ p* and u*_L = u*_R ≡ u*, while density (and thus entropy) jumps across the contact.

Exact Riemann structure (Euler, γ-law gas): U_L |~~~ L-wave ~~~| U*_L |~~ contact ~~| U*_R |~~~ R-wave ~~~| U_R p*(u_L, p_L, u_R, p_R) solved iteratively via f(p*) = f_L(p*) + f_R(p*) + (u_R – u_L) = 0 Shock (p* > p_K): f_K = (p* – p_K)√[A_K / (p* + B_K)] A_K = 2/[(γ+1)ρ_K], B_K = (γ-1)p_K/(γ+1) Raref. (p* ≤ p_K): f_K = (2c_K/(γ-1))[(p*/p_K)^((γ-1)/2γ) – 1]

Exact Solvers

Godunov’s Iterative Exact Solver

The pressure p* is found by Newton-Raphson (or bisection as fallback) on the scalar equation above, typically converging in 5–20 iterations to machine precision. Wave speeds and intermediate states are then recovered algebraically. Sampling the solution at x/t = 0 yields the interface flux used in the finite-volume update.

Pros: Exactly captures isolated shocks, contacts, and rarefactions; entropy-correct without any additional fix; the gold standard for validating approximate solvers; uniquely correct near slow moving shocks and sonic rarefactions.

Cons: Iterative convergence is expensive at scale; no closed-form for general EOS (requires nested iterations); can fail in the presence of near-vacuum states unless initialised carefully; mathematically intractable for systems beyond Euler (MHD, relativistic, multi-fluid).

Two-Rarefaction (TRRS) and Two-Shock (TSRS) Approximations

The TRRS approximates p* by assuming both nonlinear waves are rarefactions, yielding a closed-form estimate valid near vacuum. The TSRS assumes both are shocks, overestimating p* but providing a useful initial guess for Newton iterations. Toro (2009) provides explicit formulas for both; they are useful as initialisation strategies rather than standalone solvers.

Approximate Solvers: A Systematic Catalogue

SOLVERWAVE MODELKEY STRENGTHSKEY WEAKNESSESTYPICAL DOMAINRusanov / LLF1 wave (max speed)✓ Trivially simple ✓ Always positive ✓ Works for any system✗ Most diffusive ✗ Smears all waves ✗ Poor for contactsDebugging, robustness testing, stiff multi-physicsHLL2 waves (s_L, s_R)✓ Positivity preserving (Einfeldt) ✓ No entropy fix ✓ Vacuum robust✗ Diffuses contacts ✗ Misses shear wavesRobustness-critical applications; base for extensionsHLLC3 waves (adds contact s*)✓ Resolves contacts/shear ✓ Positivity preserving ✓ Widely portable✗ Carbuncle risk (2D+) ✗ Ad hoc s* estimateCompressible flow, astrophysics, multi-materialRoeN waves (full linearisation)✓ Exact for isolated waves ✓ Low numerical dissipation ✓ Sharp contacts✗ Entropy violations ✗ Not positivity-preserving ✗ Carbuncle ✗ Expensive (eigendecomp.)Aeroacoustics, smooth flow; requires entropy fixOsher-SolomonPath-integral (all sonic pts)✓ Entropy-satisfying by construction ✓ Smooth flux → implicit methods ✓ Accurate✗ Complex implementation ✗ Expensive path integrals ✗ General EOS is hardSteady flows, implicit time integration, aerodynamicsAUSM+/AUSM+-upSplit: advection + pressure✓ Excellent at low Mach ✓ No carbuncle ✓ Multi-fluid natural✗ Less robust at strong shocks ✗ Positivity not universalTurbomachinery, propulsion, low-to-high Mach transitionRelaxation (e.g., Bouchut)Extended system (3–5 waves)✓ Provably entropy-satisfying ✓ Flexible EOS ✓ Positivity for ρ, p✗ Free parameter λ ✗ Less standard; learning curveComplex EOS (stellar interiors, detonation, combustion)HLLD5 waves (MHD extension)✓ Resolves all MHD waves ✓ Positivity preserving ✓ Less diffusive than HLLC-MHD✗ MHD-specific ✗ More complex than HLLCIdeal MHD; astrophysical plasmas; dynamo codes

The Roe Solver in Detail

Roe (1981) replaces the nonlinear Riemann problem with a locally linear one. A matrix Ã(U_L, U_R) must satisfy three conditions: (1) hyperbolicity with real eigenvalues; (2) consistency, Ã(U,U) = A(U) = ∂F/∂U; and (3) the Roe property, Ã(U_R − U_L) = F_R − F_L. For the Euler equations, this is achieved via Roe-averaged states:

ρ̃ = √(ρ_L ρ_R) ũ = (√ρ_L u_L + √ρ_R u_R) / (√ρ_L + √ρ_R) H̃ = (√ρ_L H_L + √ρ_R H_R) / (√ρ_L + √ρ_R) [H = (E+p)/ρ] c̃² = (γ-1)[H̃ – ½ũ²] Roe flux: F_Roe = ½(F_L + F_R) − ½ Σ_k |λ̃_k| α_k r̃_k where: λ̃_k = kth eigenvalue of Ã, α_k = kth wave strength, r̃_k = kth right eigenvector

The Roe solver exactly resolves isolated shocks, contacts, and rarefactions, making it ideal when high accuracy is paramount. However, it admits expansion shocks (entropy violations) at sonic points: wherever λ̃_k and the corresponding physical characteristic change sign, a small perturbative fix is required. The most widely used is the Harten (1983) entropy fix, replacing |λ| with a smoothed version below a threshold δ. Einfeldt’s (1991) HLLE blends Roe with HLL wave speeds to restore positivity.

HLL and HLLC

The HLL solver (Harten, Lax, van Leer 1983) bounds all waves between a left speed s_L and right speed s_R, yielding a simple two-state approximation to the Riemann fan. The key result is:

F_HLL = (s_R F_L − s_L F_R + s_L s_R (U_R − U_L)) / (s_R − s_L) Einfeldt (HLLE) wave speeds: s_L = min(u_L − c_L, ũ − c̃) s_R = max(u_R + c_R, ũ + c̃) where ũ, c̃ are Roe-averaged velocity and sound speed.

The Einfeldt wave speeds are the minimal choice that guarantees positivity of density and pressure. HLLC (Toro, Spruce, Speares 1994) augments HLL by restoring the contact wave speed s*, estimated from momentum and mass conservation across the outer waves. The resulting flux is more accurate for shear-dominated and material-interface problems while retaining positivity under the Batten et al. (1997) conditions.

Mathematical Properties: A Checklist

Conservation: All Godunov-type solvers implemented in conservation form are conservative by construction, satisfying the Lax-Wendroff theorem: if the discrete solution converges, it converges to a weak solution.

Entropy consistency: Exact, HLLE, AUSM, Osher, and relaxation solvers are entropy-satisfying (or easily made so). Roe requires an explicit entropy fix. HLLC can generate small entropy violations in pathological cases.

Positivity: Einfeldt’s HLL and HLLC (with appropriate s*) guarantee ρ*, p* > 0 provided the wave speeds are correctly estimated. The Roe solver does not; positivity limiters (e.g., Hu, Adams, Shu 2013) are needed in rarefied flows.

Carbuncle phenomenon: Low-dissipation solvers (Roe, HLLC) applied to grid-aligned strong shocks in 2D/3D generate odd-even decoupled instabilities known as the carbuncle or Quirk instability (Quirk 1994). HLL/HLLE is immune. Practical cures include blending with HLL at shocks, rotated Riemann solvers (Nishikawa-Kitamura), or multidimensional Roe variants.

Extensions to MHD and Relativistic Flows

The ideal MHD Riemann problem has seven waves (fast, Alfvén, slow, entropy). Brio and Wu (1988) solved it exactly for a special one-dimensional case, revealing compound waves absent in hydrodynamics. Practical MHD solvers use HLLC-MHD (Gurski 2004; Li 2005) or the superior HLLD (Miyoshi and Kusano 2005), which resolves five of the seven waves. Divergence-free evolution of B is a separate concern handled by constrained transport (Evans and Hawley 1988) or Dedner cleaning.

Special relativistic hydrodynamics (SRHD) requires solving a quartic for p* in the exact solver (Martí and Müller 1994). HLLC-SRHD (Mignone and Bodo 2005) is the standard practical choice. General relativistic extensions (GRHD/GRMHD) use the same framework with source terms encoding spacetime curvature.

Key References

1. GOD59Godunov, S.K. (1959). “A difference method for numerical calculation of discontinuous solutions of the equations of hydrodynamics.” Mat. Sb. 47, 271–306. [The founding paper; still worth reading.]
2. ROE81Roe, P.L. (1981). “Approximate Riemann solvers, parameter vectors, and difference schemes.” J. Comput. Phys. 43, 357–372. [Essential reading; introduces Roe-averaging and linearisation.]
3. HLV83Harten, A., Lax, P.D., van Leer, B. (1983). “On upstream differencing and Godunov-type schemes for hyperbolic conservation laws.” SIAM Rev. 25, 35–61. [Introduces HLL; foundational theory.]
4. EIN88Einfeldt, B. (1988). “On Godunov-type methods for gas dynamics.” SIAM J. Numer. Anal. 25, 294–318. [Optimal wave-speed estimates for positivity.]
5. EIN91Einfeldt, B., Munz, C.D., Roe, P.L., Sjögreen, B. (1991). “On Godunov-type methods near low densities.” J. Comput. Phys. 92, 273–295. [HLLE positivity; critical near vacuum.]
6. TOR94Toro, E.F., Spruce, M., Speares, W. (1994). “Restoration of the contact surface in the HLL-Riemann solver.” Shock Waves 4, 25–34. [HLLC introduction.]
7. TOR09Toro, E.F. (2009). Riemann Solvers and Numerical Methods for Fluid Dynamics, 3rd ed. Springer. [The definitive reference text; exhaustive coverage.]
8. LEV02LeVeque, R.J. (2002). Finite Volume Methods for Hyperbolic Problems. Cambridge. [Superb mathematical treatment; excellent for rigour.]
9. MIY05Miyoshi, T., Kusano, K. (2005). “A multi-state HLL approximate Riemann solver for ideal MHD.” J. Comput. Phys. 208, 315–344. [HLLD; standard for MHD codes.]
10. MIG05Mignone, A., Bodo, G. (2005). “An HLLC Riemann solver for relativistic flows.” MNRAS 364, 126–136. [Relativistic HLLC.]

RESPONSE II

The Mathematical Edifice

Built from the theory of hyperbolic systems: entropy solutions, Glimm scheme, Lax–Friedrichs, and the algebraic structure underlying approximate linearisations.

QUALITY ASSESSMENT

Mathematical Depth97 / 100Physical Insight65 / 100Practical Guidance60 / 100Reference Quality93 / 100Expert Suitability80 / 10079/ 100 — Mathematically outstanding; insufficient applied relevance for engineers and astrophysicists. Ignores MHD, relativistic flows, and multi-dimensional consequences.Verdict: Exceptional for a pure or applied mathematician. Engineering and astrophysics readers will find it frustrating in its abstraction from real simulation decisions.

Hyperbolic Systems and the Category of Admissible Solutions

Let U : ℝ × ℝ⁺ → Ω ⊂ ℝⁿ satisfy the Cauchy problem for a system of hyperbolic conservation laws ∂ₜU + ∂ₓF(U) = 0 with U(·,0) = U₀ ∈ L¹ ∩ BV. Hyperbolicity requires the Jacobian A(U) = DF(U) to have real eigenvalues λ₁ ≤ ··· ≤ λₙ and a complete set of eigenvectors. Strict hyperbolicity (λ₁ < ··· < λₙ) and the additional structure of either genuinely nonlinear (∇λₖ · rₖ ≠ 0) or linearly degenerate (∇λₖ · rₖ ≡ 0) fields, as in Lax (1957), governs the wave types admitted.

Classical solutions generally cease to exist in finite time; one passes to weak solutions satisfying the integral identity against test functions with compact support. However, weak solutions are not unique. The Lax entropy condition — that characteristics from both sides impinge on a shock — selects the physically relevant solution, equivalently characterised by the existence of a convex entropy pair (η, q) satisfying ∂ₜη(U) + ∂ₓq(U) ≤ 0 in the distributional sense.

KRUZKOV–LAX–GLIMM EXISTENCE THEORYFor genuinely nonlinear strictly hyperbolic systems with small BV initial data, Glimm (1965) proved global existence of entropy weak solutions via a random-choice scheme that stitches together exact Riemann solutions. The total variation decreases in time: TV(U(·,t)) ≤ C · TV(U₀). Bressan et al. (2000) established uniqueness and L¹-stability of such solutions. These results make the Riemann problem the canonical building block of the theoretical analysis, and justify its centrality in numerical schemes.

The Godunov Framework and First-Order Accuracy

Godunov’s scheme is the exact time integration of the conservation law when the solution is initialised as piecewise constant on a mesh of cells [x_{j-½}, x_{j+½}]. The cell average at time tⁿ⁺¹ is:

U_j^{n+1} = U_j^n − (Δt/Δx)[F̂(U_j^n, U_{j+1}^n) − F̂(U_{j-1}^n, U_j^n)] where F̂(U_L, U_R) = F(U*(0; U_L, U_R)) [flux from the exact Riemann solution evaluated at x/t = 0]

The scheme is conservative (Lax-Wendroff theorem: convergent conservative schemes converge to weak solutions), consistent (F̂(U,U) = F(U)), and monotone in the scalar case. Harten, Hyman, and Lax (1976) established the DVS property (diminishing variations in space), and the L¹ contraction property follows. By Godunov’s theorem for linear monotone schemes, the scheme is exactly first-order: no linear scheme can be simultaneously more than first-order accurate and monotone.

GODUNOV’S THEOREM (1959)Any linear scheme that is monotone (i.e., does not create new extrema) is at most first-order accurate. Corollary: Higher-order accuracy requires nonlinear limiters — the theoretical foundation for MUSCL, PPM, ENO, and WENO reconstructions.

Roe Linearisation: Algebraic Structure

The Roe solver constructs a constant matrix à ≡ Ã(U_L, U_R) satisfying three algebraic conditions:

(R1) Ã(U_L, U_R)(U_R − U_L) = F(U_R) − F(U_L) [Roe property: exact for all jumps] (R2) Ã(U, U) = A(U) = DF(U) [consistency at smooth solutions] (R3) Ã has a complete set of real eigenvalues [hyperbolicity preserved]

Condition (R1) is a telescoping property ensuring that the linearised Rankine-Hugoniot condition holds exactly for all pairs (U_L, U_R). This is non-trivial: for the Euler equations it requires Roe-averaged states (Roe 1981). For systems with a convex entropy, Merriam (1989) and Parés (2006) have studied the algebraic constraints on à arising from the entropy inequality; in general, there is no Roe matrix that simultaneously satisfies (R1)–(R3) and the entropy inequality, necessitating ad hoc fixes.

Entropy Fixes: The Harten–Hyman Framework

The Roe solver evaluates |λ̃_k| in the numerical diffusion operator. At sonic points where a characteristic speed changes sign — specifically where λ_k(U_L) < 0 < λ_k(U_R) — the exact Riemann solution contains a sonic rarefaction, but the Roe solver can generate an expansion shock (entropy violation). Harten (1983) proposed replacing |λ| with:

Φ_δ(λ) = |λ| if |λ| ≥ δ (λ² + δ²)/(2δ) if |λ| < δ

This adds artificial diffusion only near sonic points. The choice of δ affects accuracy; Harten and Hyman (1983) proposed adaptive values based on left and right eigenvalues. The fundamental difficulty is that no local entropy fix can be simultaneously optimal for all wave configurations.

The HLL Family: Wave-Speed Bounds and Positivity

HLL can be derived as the exact solution of a linearised Riemann problem with two intermediate states collapsed to one, or equivalently as the minimal two-wave bound satisfying the entropy inequality. The key result of Einfeldt (1988) is that the HLL flux with wave speeds:

s_L ≤ min(λ_1(U_L), λ̃_1), s_R ≥ max(λ_n(U_R), λ̃_n) where λ̃_k are the eigenvalues of the Roe matrix

guarantees a positivity-preserving update for density and internal energy under the CFL condition Δt ≤ Δx / max(|s_L|, |s_R|). This is the sharpest such result: any tighter wave-speed bound risks negative densities. The Einfeldt solver (HLLE) is thus the provably optimal robust choice in the HLL family — a rare result where mathematical optimality and practical robustness coincide.

Osher’s Path-Integral Formulation and Entropy

Osher and Solomon (1982) defined a numerical flux via a path integral in phase space:

F_Osher(U_L, U_R) = ½[F(U_L) + F(U_R)] − ½ ∫_{U_L}^{U_R} |A(U(s))| dU(s) The path U(s) connects U_L to U_R through the wave ordering, passing through sonic points. |A| is the matrix with eigenvalues |λ_k| and eigenvectors of A.

This flux is entropy-satisfying by construction — the absolute value operator suppresses the sign of each characteristic speed, automatically enforcing the entropy inequality. The resulting flux is also differentiable (unlike Roe or HLL), a crucial property for Newton-based implicit solvers where the Jacobian of the flux must be computed analytically. The practical challenge is evaluating the path integral, which requires locating all sonic points and integrating through the nonlinear wave structure.

Relaxation Schemes: A Modern Theoretical Perspective

Jin and Xin (1995) introduced relaxation schemes by replacing the nonlinear conservation law with a semilinear relaxation system with a stiff source term. In the limit ε → 0, the relaxation system reduces to the original one. This framework was refined by Bouchut (2004) into a class of kinetic-type relaxation solvers where the free parameter λ (a sub-characteristic speed bound) can be chosen to guarantee: (1) consistency with the entropy inequality; (2) positivity of density and pressure; and (3) exact resolution of material interfaces for multi-fluid problems. The mathematical elegance is that the entropy property is built into the structure of the relaxation system rather than imposed externally.

Key References (Mathematics Focus)

1. LAX57Lax, P.D. (1957). “Hyperbolic systems of conservation laws II.” Comm. Pure Appl. Math. 10, 537–566. [Foundational: genuinely nonlinear vs. linearly degenerate fields.]
2. GLI65Glimm, J. (1965). “Solutions in the large for nonlinear hyperbolic systems.” Comm. Pure Appl. Math. 18, 697–715. [Global existence via random-choice Riemann solutions.]
3. GOD59Godunov, S.K. (1959). Mat. Sb. 47, 271–306. [First-order exact scheme; monotonicity theorem.]
4. HAR83Harten, A. (1983). “High resolution schemes for hyperbolic conservation laws.” J. Comput. Phys. 49, 357–393. [TVD schemes and entropy fixes.]
5. OSH82Osher, S., Solomon, F. (1982). “Upwind difference schemes for hyperbolic systems of conservation laws.” Math. Comp. 38, 339–374. [Path-integral flux; entropy by construction.]
6. JIN95Jin, S., Xin, Z. (1995). “The relaxation schemes for systems of conservation laws.” Comm. Pure Appl. Math. 48, 235–276. [Relaxation framework.]
7. BOU04Bouchut, F. (2004). Nonlinear Stability of Finite Volume Methods for Hyperbolic Conservation Laws and Well-Balanced Schemes for Sources. Birkhäuser. [Rigorous relaxation solvers with positivity.]
8. BRE00Bressan, A. (2000). Hyperbolic Systems of Conservation Laws: The One-Dimensional Cauchy Problem. Oxford. [Definitive modern mathematical treatment.]
9. DAF10Dafermos, C. (2010). Hyperbolic Conservation Laws in Continuum Physics, 3rd ed. Springer. [Encyclopedic mathematical reference.]
10. LEV02LeVeque, R.J. (2002). Finite Volume Methods for Hyperbolic Problems. Cambridge. [Bridges mathematics and numerics.]

RESPONSE III

The Practitioner’s Decision Framework

What to use, when, why, and what breaks — organised by application class, implementation consequences, and failure modes.

QUALITY ASSESSMENT

Mathematical Depth70 / 100Physical Insight93 / 100Practical Guidance97 / 100Reference Quality86 / 100Expert Suitability90 / 10087/ 100 — Excellent applied value; strong on failure modes and domain-specific advice. Underserves mathematicians; some treatment of theoretical properties is superficial.Verdict: The response a senior simulation engineer or astrophysics code developer would find most immediately actionable. Less valuable as a theoretical reference.

Solver Choice Is a Physical Decision, Not Just a Numerical One

Every Riemann solver is a model of the sub-grid wave structure. Choosing a solver is choosing how much physical information you trust to propagate correctly at the resolution of your mesh. No solver is universally optimal; the trade-off space spans: dissipation vs. stability, wave resolution vs. robustness, and cost vs. accuracy. The wrong choice for an application can give qualitatively incorrect results that are nonetheless visually plausible — the most dangerous failure mode.

Application-Class Decision Guide

Class 1: Smooth Flows and Aeroacoustics (M < 0.3 or M ≫ 1)

Low-Mach number flows expose the most destructive property of standard upwind solvers: the numerical dissipation is O(Δx) in the acoustic regime but O(1) in the convective regime when M → 0, because the pressure scaling couples acoustic and entropy modes with equal weight. This is the low-Mach problem. Standard Roe at M = 0.01 generates O(1/M) spurious pressure fluctuations (Guillard and Murrone 2004). Remedies: Thornber et al. (2008) velocity reconstruction fix for HLLC; Rieper (2011) low-Mach Roe; AUSM+-up (Liou 2006) with its explicit low-Mach pressure parameter.

At high Mach (M ≫ 1), smooth flows benefit from Roe’s low dissipation. The cost of the eigendecomposition is justified. The carbuncle problem is absent on unstructured or off-axis grids; it only appears for grid-aligned shocks.

Class 2: Shock-Dominated Flows (reentry, detonation, blast waves)

Here robustness is paramount. HLLC with Einfeldt wave speeds is the default workhouse: it resolves contacts (important for tracking material interfaces in ablation or multi-fluid detonations), is positivity-preserving, and does not generate carbuncle instabilities at moderate shock Mach numbers. At very strong shocks (Mach > 50, as in astrophysical bow shocks), even HLLC can carbuncle. The cure is sensor-based hybridisation: detect grid-aligned shocks and switch locally to HLL.

CARBUNCLE HAZARDThe carbuncle (Quirk 1994) is not an instability of the flow — it is an instability of the discrete operator caused by the decoupling of transverse momentum across a grid-aligned shock. Roe and HLLC are susceptible. It manifests as a blister or kink on the bow shock ahead of blunt bodies, or as streaky artefacts in grid-aligned blast waves. Pure HLL/HLLE is immune. Hybrid strategies (Xie et al. 2017 MOOSE; Dumbser et al. 2004 matrix dissipation) are the current best practice.

Class 3: Turbulence and Mixing Layers (implicit LES)

For under-resolved turbulence, the solver’s numerical dissipation acts as an implicit sub-grid model. Too much dissipation (Rusanov, HLL) damps turbulent kinetic energy at the resolved scales, effectively over-predicting sub-grid dissipation. Too little (Roe without any entropy fix) leads to odd-even checkerboard modes or energy pile-up. The community consensus (Thornber et al. 2008; Movahed and Johnsen 2015) is that HLLC with a low-Mach velocity fix provides the best implicit LES behaviour: its numerical dissipation scales with M² at low Mach, consistent with the physical scaling of the Reynolds stress.

Class 4: Astrophysical MHD (stellar winds, accretion, dynamo)

The seven-wave MHD Riemann problem (Brio and Wu 1988) has a qualitatively different structure than Euler: intermediate shocks exist in certain regions of state space, and the unique admissibility criterion remains contested. The HLLD solver (Miyoshi and Kusano 2005) is the current standard: it resolves fast, Alfvén, slow, and contact waves (five states), is positivity-preserving, and has been implemented in virtually every major astrophysical MHD code (Athena, RAMSES, PLUTO, FLASH). Divergence-free evolution of ∇·B = 0 must be handled separately — constrained transport (Evans and Hawley 1988) or hyperbolic divergence cleaning (Dedner et al. 2002) — as any Riemann-based flux updates the volume-averaged B, not the face-centred fields that CT requires.

Class 5: Relativistic Flows (GRB jets, neutron star mergers, core-collapse)

The exact relativistic Riemann solver (Martí and Müller 1994, 1996) requires solving a quartic in p* that involves the Lorentz factor W = (1 – v²/c²)^{-½}; near W → ∞ this is numerically ill-conditioned. The HLLC-SRHD solver (Mignone and Bodo 2005) is robust and accurate; Mignone’s PLUTO code implements both. For general relativistic MHD (e.g., HARM, IllinoisGRMHD, Athena++), the HLLC or HLLD formulation in a 3+1 foliation of spacetime, with the conservative-to-primitive recovery as the hardest numerical step, has become standard.

Class 6: Complex EOS (real gases, degenerate matter, multi-phase)

The exact solver requires iteration for general EOS; this is feasible but expensive. More practically, HLLC and HLL adapt naturally: wave speed estimates use the EOS-dependent sound speed, and the solver structure is otherwise unchanged. Relaxation solvers (Bouchut 2004; Coquel et al.) are particularly valuable here because the free parameter λ is chosen based purely on the local sound speed — no eigendecomposition of the EOS-dependent Jacobian is needed.

Implementation Consequences and Failure Modes

Positivity Failure

In rarefied flows (stellar wind-ISM interface, jet-cocoon boundary), densities can become negative due to the sum of fluxes being locally large. Roe without modification is the most vulnerable. Practical cure: apply a positivity limiter post-reconstruction (Hu et al. 2013, Zhang and Shu 2010) or fall back to Rusanov at cells where positivity would be violated. This is standard in production codes (Athena++, FLASH).

Slow-Moving Contacts

HLL severely damps stationary contacts because the two-wave structure does not distinguish the contact speed. A stationary contact becomes a ramp of O(Δx) cells per time step. For multi-material problems (Rayleigh-Taylor, Richtmyer-Meshkov) this is physically unacceptable. HLLC or Roe is required. The correct choice has a direct impact on mixing-layer growth rates.

High-Order Reconstruction + Solver Interaction

At higher than first-order accuracy, the solver’s dissipation characteristics interact non-trivially with the reconstruction (MUSCL, PPM, WENO, DG). A highly diffusive solver (HLL) wastes the accuracy of a 5th-order WENO reconstruction. Conversely, a low-dissipation solver (Roe) combined with aggressive limiting (monotonised central) may under-resolve the implicit sub-grid contribution. The sweet spot for most shock-turbulence problems is HLLC + 4th-order WENO or PPM.

THE HIDDEN COST OF THE ROE EIGENDECOMPOSITIONOn modern GPU architectures, the Roe eigendecomposition (n² operations in n-dimensional state space) carries a branch-divergence cost in SIMD execution that is disproportionately larger than its flop count suggests. For n = 3 (Euler) this is manageable; for n = 8 (ideal MHD) or n = 10+ (multi-fluid), HLLC or HLLD is typically faster and more robust on GPUs despite being a different algorithm. Profiling on target hardware before architectural commitment is essential.

Comparative Decision Matrix

CRITERIONRUSANOVHLL/HLLEHLLCROE+FIXAUSM+-UPHLLDContact resolutionPoorPoorGoodExcellentGoodExcellentShock robustnessExcellentExcellentGoodNeeds fixGoodGoodPositivityAlwaysEinfeldtWith careNoPartialYesLow-Mach accuracyPoorPoorNeeds fixNeeds fixGoodN/ACarbuncle riskNoneNoneModerateHighLowLowEntropy complianceYesYesNear-yesNeeds fixYesYesGPU efficiencyExcellentExcellentVery goodModerateGoodGoodApplies to MHDYesYesPartialYesNoYes

Key References (Application Focus)

1. TOR09Toro, E.F. (2009). Riemann Solvers and Numerical Methods for Fluid Dynamics, 3rd ed. Springer. [Most comprehensive applied reference.]
2. QUI94Quirk, J.J. (1994). “A contribution to the great Riemann solver debate.” Int. J. Numer. Methods Fluids 18, 555–574. [Definitive paper on the carbuncle.]
3. THO08Thornber, B., Mosedale, A., Drikakis, D. (2008). “On the implicit large eddy simulations of homogeneous decaying turbulence.” J. Comput. Phys. 227, 4873–4894. [Low-Mach HLLC fix; implicit LES analysis.]
4. LIO06Liou, M.S. (2006). “A sequel to AUSM, Part II: AUSM+-up for all speeds.” J. Comput. Phys. 214, 137–170. [Best AUSM reference for multi-speed applications.]
5. MIY05Miyoshi, T., Kusano, K. (2005). J. Comput. Phys. 208, 315–344. [HLLD for MHD; the standard reference.]
6. MAR94Martí, J.M., Müller, E. (1994). “The analytical solution of the Riemann problem in relativistic hydrodynamics.” J. Fluid Mech. 258, 317–333. [Exact SRHD solver.]
7. DED02Dedner, A., et al. (2002). “Hyperbolic divergence cleaning for the MHD equations.” J. Comput. Phys. 175, 645–673. [∇·B = 0 control in production codes.]
8. ZHA10Zhang, X., Shu, C.W. (2010). “On positivity-preserving high order discontinuous Galerkin schemes.” J. Comput. Phys. 229, 8918–8934. [Positivity limiters for high-order methods.]
9. BAT97Batten, P., Clarke, N., Lambert, C., Causon, D.M. (1997). “On the choice of wavespeeds for the HLLC Riemann solver.” SIAM J. Sci. Comput. 18, 1553–1570. [Positivity conditions for HLLC s* estimate.]
10. COL84Colella, P., Woodward, P.R. (1984). “The piecewise parabolic method (PPM).” J. Comput. Phys. 54, 174–201. [Still one of the best reconstruction methods for compressible turbulence.]

RESPONSE IV

The Integrated Synthesis

Mathematical rigour, physical intuition, and practical consequences unified — connecting classical theory to high-order methods, modern architectures, and open frontiers.

QUALITY ASSESSMENT

Mathematical Depth94 / 100Physical Insight95 / 100Practical Guidance95 / 100Reference Quality97 / 100Expert Suitability97 / 10096/ 100 — Outstanding synthesis across disciplines; addresses consequences, frontiers, and cross-cutting themes. Minor room to deepen relaxation and kinetic scheme connections.Verdict: The response a full professor publishing across CFD, astrophysics, or computational mathematics would find most intellectually satisfying and complete.

Why the Riemann Problem Is Central

The Riemann problem is not merely a computational convenience — it is the canonical nonlinear interaction in a hyperbolic system. Lax (1957) showed that the elementary waves (shocks, rarefactions, contact discontinuities) are the atoms from which all solutions of small total variation are built via Glimm’s superposition. Godunov’s insight was that if you can solve the Riemann problem at every cell interface — even approximately — you obtain a scheme that respects the causal, characteristic structure of the PDE, rather than merely approximating it with central differences or diffusive stencils. This is the key distinction between Godunov-type methods and their predecessors.

Every approximate Riemann solver is therefore an answer to the question: which aspects of this wave structure are most important to preserve? The answer depends on the physics of the problem. This epistemic framing is the most useful lens through which to evaluate solver choices.

The Exact Solver: Benchmark and Instrument

The iterative exact solver for the Euler equations solves the scalar pressure equation f(p*) = f_L(p*) + f_R(p*) + (u_R – u_L) = 0 where f_K is the Rankine-Hugoniot jump function for a shock or the isentropic rarefaction function, depending on whether p* ≷ p_K. Newton iteration from a PVRS or TRRS initial guess typically converges in 2–10 iterations. The solution sampling — evaluating U(0; U_L, U_R) from the wave speeds and jump conditions — is a second, equally involved computation.

Riemann solution sampling (Euler, self-similar in x/t): Left shock (p* > p_L): S_L = u_L − c_L √[(γ+1)p*/(2γp_L) + (γ-1)/(2γ)] Left raref. (p* ≤ p_L): fan bounded by u_L − c_L and u* − c*_L inside: ρ = ρ_L[2/(γ+1) + (γ-1)/((γ+1)c_L)(u_L − x/t)]^(2/(γ-1)) Contact: x/t = u* (p constant, u constant, density jumps) Then mirror for right wave family

The exact solver’s value is threefold: as a validation baseline for approximate solvers, as a sub-problem solver in some codes that can afford the cost, and as a theoretical instrument for understanding wave structure. In practice, for the Euler equations with ideal gas EOS, it adds perhaps a factor of 3–5 cost over HLLC with negligible accuracy gain on smooth problems, but critical accuracy gain for near-sonic and near-vacuum configurations.

Approximate Solvers: A Hierarchy of Physical Fidelity

One can arrange approximate solvers by the number of waves they explicitly model, with a corresponding hierarchy of physical fidelity and computational cost:

THE WAVE-FIDELITY HIERARCHYLEVEL 0 — RUSANOV/LLF:One effective wave, maximally diffusive. Models nothing of the wave structure; only bounds the domain of dependence. LEVEL 1 — HLL/HLLE:Two bounding waves. The intermediate state contains a correct conservation law but ignores all internal structure. LEVEL 2 — HLLC/HLLD:Restores contact(s) and shear waves. Qualitatively correct wave count for Euler (3) and MHD (5). LEVEL 3 — ROE/OSHER:Full n-wave structure, each wave resolved individually. Maximum accuracy for each wave in isolation. LEVEL 4 — EXACT SOLVER:Nonlinear wave structure captured with arbitrary accuracy. No modelling assumptions.

Roe’s Linearisation: Algebraic Elegance and Physical Consequence

The Roe matrix à satisfying the property Ã(U_R – U_L) = F_R – F_L is the unique linearisation that recovers the Rankine-Hugoniot conditions exactly for all isolated shocks, contacts, and rarefactions. This is a remarkable property: the linearised solver “knows” the full nonlinear wave structure for single-wave Riemann data. It fails only when two or more waves interact in the same Riemann problem, or when a rarefaction spans a sonic point (where the characteristic speed changes sign).

The sonic-point entropy violation is not merely a numerical curiosity — it represents a physically real failure mode. An expansion shock (anti-entropy shock) is a solution to the Rankine-Hugoniot conditions that is thermodynamically forbidden: it would require heat to flow from cold to hot across the wave. The Harten entropy fix adds just enough dissipation at the sonic point to destroy this fictitious wave. But the parameter δ in the fix is ad hoc — there is no universal prescription, and Quirk (1994) showed that aggressive entropy fixes can themselves degrade accuracy.

The Carbuncle: A Multidimensional Catastrophe of Under-Dissipation

The carbuncle instability is arguably the most important practical failure mode in computational gas dynamics. It occurs when a Riemann solver has insufficient dissipation in the transverse direction to a grid-aligned shock. The mechanism (analysed by Pandolfi and D’Ambrosio 2001, and Dumbser, Moschetta, Gressier 2004) is a linear instability of the discrete system: odd-even modes in the transverse direction are not damped because the 1D Riemann solver at each face provides no coupling between adjacent cells in the shock-parallel direction. HLL/HLLE is immune because its intermediate state is isotropic; Roe and HLLC are not.

Modern cures include: (1) local sensor-based hybridisation (switch to HLL at detected shocks); (2) Nishikawa-Kitamura rotated Riemann solvers that use a 2D normal direction based on the pressure gradient, restoring isotropy; (3) matrix dissipation methods (Dumbser et al.); and (4) genuinely multidimensional Riemann solvers (Balsara 2010, 2012), which formulate the Riemann problem at cell corners rather than faces and eliminate the directional splitting that causes the instability. The last approach is theoretically cleanest but computationally expensive and geometrically complex.

Low-Mach: An Intrinsic Failure of Upwind Dissipation Scaling

The low-Mach problem is structural, not incidental. Upwind dissipation scales as O(c Δx) where c is the acoustic speed; at M ≪ 1, this dominates the convective term by a factor O(1/M). The physical incompressible pressure, which is a Lagrange multiplier enforcing ∇·u = 0, is overrun by acoustic dissipation. Guillard and Murrone (2004) showed this analytically for the Roe solver; similar results hold for HLLC.

Effective remedies are: (1) AUSM+-up, which scales the pressure contribution independently of the acoustic part; (2) preconditioning (Weiss-Smith, Turkel) applied to both the time derivative and the dissipation term, which effectively rescales the eigenvalues to remove the acoustic-convective disparity; (3) the Thornber et al. modification to HLLC, which reduces the relative velocity in the flux from u_R – u_L to M(u_R – u_L). Each has different properties with respect to steady-state convergence and stability.

Mathematical Properties: A Consolidated View

PROPERTYEXACTHLLEHLLCROE+FIXOSHERRELAXATIONConservative✓✓✓✓✓✓Consistent✓✓✓✓✓✓Entropy-satisfying✓✓Near-✓Needs fix✓✓Positivity (ρ, p > 0)✓✓Conditionally✗Partial✓Exact isolated shock✓✗Near✓✓NearExact isolated contact✓✗✓✓✓NearFlux differentiability✗✗✗✗ (|λ|)✓✗Carbuncle-freeN/A✓Often ✗✗✓✓Generalises to MHD✗ easily✓Partial✓Hard✓Implicit-friendly✗✓✓Partial✓✓✓

Consequences for High-Order Schemes

When a Godunov-type first-order scheme is extended to higher order via MUSCL, PPM, ENO, or WENO reconstruction, the Riemann solver at the reconstructed face operates on input states (U_L^{r}, U_R^{r}) that are no longer constants but polynomials extrapolated from cell data. The solver’s dissipation characteristics then interact with the reconstruction in a non-trivial way.

For methods of order p, the leading error term is a dispersion or dissipation error of order O(Δx^p). The Riemann solver contributes at O(Δx) in dissipation — but only through its upwind correction, which at smooth solutions is O(Δx) regardless of solver choice. This means: at smooth solutions, the solver choice has a second-order effect on the overall accuracy of a high-order scheme. At discontinuities, however, solver choice is decisive: a diffusive solver (HLL) at an under-resolved shock produces a wider shock profile than HLLC or Roe, directly affecting post-shock state accuracy and downstream flow.

Discontinuous Galerkin methods use upwind Riemann fluxes at element boundaries as the mechanism for information exchange between elements. The choice of solver is the only stabilisation mechanism in the DG formulation; without it, the method is unconditionally unstable. For DG with polynomial degree p, the Riemann flux contributes a numerical dissipation of O(Δx^{2p+1}) at smooth solutions but retains O(Δx) behaviour at shocks — making HLLC the workhorse choice for DG applied to compressible flow.

Modern Frontiers

Genuinely Multidimensional Solvers

Balsara (2010, 2012) developed two-dimensional HLLE and MHD Riemann solvers at cell vertices that simultaneously account for all waves impinging from the four adjacent cells. These solvers are mathematically cleaner than dimension-by-dimension splitting and are essential for the correct evaluation of the electric field in constrained transport MHD (the cross-product E = −v × B at a vertex involves a genuinely 2D Riemann problem). The Balsara-Dumbser (2015) approach extends this to an arbitrary number of spatial dimensions and wave families.

All-Speed and Unified Compressible/Incompressible Solvers

The preconditioning approach (Turkel 1987; Weiss and Smith 1995) modifies the time-derivative term and the upwind dissipation matrix to rescale eigenvalues from the acoustic regime to the convective regime. This unifies compressible Riemann-based schemes with incompressible limits, enabling single-code simulation of flows spanning M = 10^{-3} to M = 5. The mathematical penalty is that the time-accurate properties of the preconditioned system are modified; steady-state and pseudo-transient continuation methods are the primary application.

Machine Learning and Learned Riemann Solvers

A nascent literature (Magiera et al. 2020; Bois et al. 2023; Bezgin et al. 2023 with JAX-FLUIDS) trains neural networks to replace or augment Riemann solvers, aiming to recover the accuracy of an exact solver at the cost of an approximate one. The fundamental challenge is guaranteeing conservation, entropy compliance, and positivity for out-of-distribution states — properties that classical solvers provide by algebraic construction. Current learned solvers typically require wrapping in a conservative correction layer and are restricted to known EOS families. The field is moving fast; the theoretical framework of Lax and Glimm ensures there are hard constraints that no learning procedure can circumvent without explicit enforcement.

The Physical Intuition: What You Are Really Choosing

Every choice along the HLL-to-Roe spectrum is a choice about what information you trust the mesh to carry. HLL says: the mesh is too coarse to distinguish the contact from the acoustic waves — average them together and pay a diffusion cost. Roe says: the mesh is fine enough that each wave family can be tracked independently — resolve them all, but accept entropy risk. HLLC says: the acoustic waves are robust, but contacts matter enough to restore — find the middle ground.

In the limit of infinite resolution, every solver converges to the exact solution (Lax-Wendroff theorem). The solver choice governs the rate of this convergence and the qualitative character of under-resolved solutions. At the resolutions actually achievable in production astrophysical, aerospace, or geophysical simulations — where shocks are typically 1–3 cells wide and turbulent cascades end at the grid scale — the solver is not merely an approximation device but an active physical model. This is why the best practitioners treat solver selection with the same rigour as turbulence modelling or EOS choice.

THE FUNDAMENTAL TRADE-OFF IN A SINGLE STATEMENTA Riemann solver that is less dissipative resolves waves more sharply — but risks entropy violations, positivity failure, and multidimensional instability. A solver that is more dissipative is robust and entropy-safe — but spreads information faster than the physics, degrading accuracy for shear flows, contacts, and turbulence. The art of solver design is finding the minimal, targeted dissipation that stabilises exactly the modes that need stabilisation, and nothing more.

Master Reference List

1. GOD59Godunov, S.K. (1959). “A difference method for numerical calculation of discontinuous solutions.” Mat. Sb. 47, 271–306. [The founding paper.
2. LAX57Lax, P.D. (1957). “Hyperbolic systems of conservation laws II.” Comm. Pure Appl. Math. 10, 537–566. [Wave classification; genuinely nonlinear fields.]
3. GLI65Glimm, J. (1965). “Solutions in the large for nonlinear hyperbolic systems.” Comm. Pure Appl. Math. 18, 697–715. [Global existence; random-choice scheme.]
4. ROE81Roe, P.L. (1981). “Approximate Riemann solvers, parameter vectors, and difference schemes.” J. Comput. Phys. 43, 357–372. [Roe averaging; the most-cited paper in the field.]
5. HLV83Harten, A., Lax, P.D., van Leer, B. (1983). “On upstream differencing and Godunov-type schemes.” SIAM Rev. 25, 35–61. [HLL; entropy theory for two-wave models.]
6. OSH82Osher, S., Solomon, F. (1982). “Upwind difference schemes for hyperbolic conservation laws.” Math. Comp. 38, 339–374. [Path-integral flux; entropy by construction.]
7. EIN88Einfeldt, B. (1988). “On Godunov-type methods for gas dynamics.” SIAM J. Numer. Anal. 25, 294–318. [Optimal wave-speed estimates; positivity of HLLE.]
8. EIN91Einfeldt, B., Munz, C.D., Roe, P.L., Sjögreen, B. (1991). “On Godunov-type methods near low densities.” J. Comput. Phys. 92, 273–295. [HLLE positivity proof; vacuum states.]
9. TOR94Toro, E.F., Spruce, M., Speares, W. (1994). “Restoration of the contact surface in the HLL-Riemann solver.” Shock Waves 4, 25–34. [HLLC introduction.]
10. BAT97Batten, P., Clarke, N., Lambert, C., Causon, D.M. (1997). “On the choice of wavespeeds for the HLLC Riemann solver.” SIAM J. Sci. Comput. 18, 1553–1570. [Positivity conditions for HLLC.]
11. QUI94Quirk, J.J. (1994). “A contribution to the great Riemann solver debate.” Int. J. Numer. Methods Fluids 18, 555–574. [Carbuncle analysis; essential reading.]
12. HAR83Harten, A. (1983). “High resolution schemes for hyperbolic conservation laws.” J. Comput. Phys. 49, 357–393. [TVD, entropy fix; foundational for high-resolution methods.]
13. MIY05Miyoshi, T., Kusano, K. (2005). “A multi-state HLL approximate Riemann solver for ideal MHD.” J. Comput. Phys. 208, 315–344. [HLLD; standard for astrophysical MHD.]
14. MIG05Mignone, A., Bodo, G. (2005). “An HLLC Riemann solver for relativistic flows.” MNRAS 364, 126–136. [Relativistic HLLC; the basis of PLUTO, Athena++ SRHD.]
15. MAR94Martí, J.M., Müller, E. (1994). J. Fluid Mech. 258, 317–333; (1996) J. Comput. Phys. 123, 1–14. [Exact relativistic Riemann solver; two-part series.]
16. LIO06Liou, M.S. (2006). “AUSM+-up for all speeds.” J. Comput. Phys. 214, 137–170. [Best all-speed solver for propulsion/turbomachinery.]
17. BOU04Bouchut, F. (2004). Nonlinear Stability of Finite Volume Methods. Birkhäuser. [Rigorous relaxation solvers; positivity by design.]
18. BAL10Balsara, D.S. (2010). “Multidimensional HLLE Riemann solver.” J. Comput. Phys.229, 1970–1993; (2012) J. Comput. Phys. 231, 7476–7503. [Genuinely multidimensional solvers; vertex-based.]
19. THO08Thornber, B., Mosedale, A., Drikakis, D. (2008). J. Comput. Phys. 227, 4873–4894. [Low-Mach HLLC fix; implicit LES dissipation analysis.]
20. TOR09Toro, E.F. (2009). Riemann Solvers and Numerical Methods for Fluid Dynamics, 3rd ed. Springer. [The definitive monograph; inexhaustible reference.]
21. LEV02LeVeque, R.J. (2002). Finite Volume Methods for Hyperbolic Problems. Cambridge. [Mathematical treatment with excellent coding perspective.]
22. COL84Colella, P., Woodward, P.R. (1984). “The piecewise parabolic method (PPM).” J. Comput. Phys. 54, 174–201. [The solver + reconstruction paper for compressible turbulence.]
23. SHU98Shu, C.W. (1998). “Essentially non-oscillatory and weighted essentially non-oscillatory schemes.” NASA/CR-97-206253. [WENO framework; standard high-order companion to Riemann solvers.]
24. DED02Dedner, A., et al. (2002). “Hyperbolic divergence cleaning for MHD.” J. Comput. Phys. 175, 645–673. [∇·B = 0; Dedner cleaning method.]
25. DUM04Dumbser, M., Moschetta, J.M., Gressier, J. (2004). “A matrix stability analysis of the carbuncle phenomenon.” J. Comput. Phys. 197, 647–670. [Rigorous carbuncle analysis; cures.]
